📖 This resource serves as the user guide for the Umbra Smart Lamp "Cup" [Model: SQUB03] and "Cono" [Model: SQUB01].
| UMBRA SMART LAMP "CUP" |
Getting Started with the Umbra Smart Lamp "Cup" [Model: SQUB03]
Welcome to your new Umbra Smart Lamp, powered by Nanoleaf! Here’s everything you need to know to get started quickly and safely.
What’s in the box 📦
• Umbra Smart Lamp
• Power cable (USB)
• Quick Start Guide (this one!)
• Pairing sticker
This product is available in one color: Black.
— — —
Powering On
• Plug the USB power cable into a suitable power outlet or charging brick.
• Press the Power ON/OFF button to turn the lamp on or off.
💡 The USB port on the lamp can also be used to charge your mobile device.
|
Pairing the Cup with the Nanoleaf App Your Umbra Lamp uses Bluetooth or Thread to connect with the Nanoleaf App. |
Requirements:
• Nanoleaf App (version 9.0.0 or higher)
• Mobile device with Bluetooth enabled
⭐ Optional: Thread network with credentials saved on your mobile device
HOW-TO:
• Download and launch the Nanoleaf App from your app store.
• Tap the “+” icon to add a new device.
• Scan the Pairing Code Sticker included with your lamp.
• Follow the on-screen steps to complete setup.
If you're using Thread, ensure your mobile device has access to Thread credentials (typically shared via iOS or Android natively).
— — —

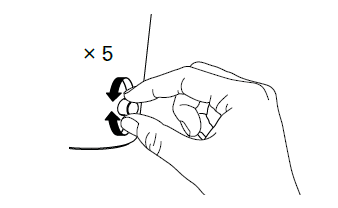

| Resetting the Cup |
If you need to reset your device:
|
• Switch the lamp OFF If the reset is successful, the lamp will flash red three (3) times. 💡Once reset, you can pair the lamp again using the Nanoleaf App. |
| UMBRA SMART LAMP "CONO" |
Getting Started with the Umbra Smart Lamp "Cono" [Model: SQUB01]
Welcome to your new Umbra Smart Lamp, powered by Nanoleaf! Here’s everything you need to know to get started quickly and safely.
The Umbra Cono is a portable, rechargeable smart lamp offering customizable lighting in both white and color modes. It includes intuitive touch-based controls, a USB-C charging port, and app-based pairing with the Nanoleaf App for enhanced smart features
What’s in the box 📦
• Umbra Smart Lamp
• Power cable (USB)
• Quick Start Guide (this one!)
• Pairing sticker
This product is available in two (2) colors: Gray or Sierra
— — —
Charging the Cono
• Red Light = Charging
• Green Light = Fully Charged
🔋Use the included USB-C cable to charge the light, simply plug it into the charging port until the indicator turns green.
— — —
Using the Cono
| Action | What to Do |
|---|---|
| Power ON/OFF | Tap the power button once to turn the lamp on or off. |
| Cycle Through Whites/Colors |
Tap to cycle between white and colored light modes. Long-press to adjust brightness levels |
| Cycle Brightness | Tap for two (2) seconds to cycle through brightness modes |
| Wake-up Mode (initial use) | Tap three (3) times to activate |
|
Pairing the Cono with the Nanoleaf App Your Umbra Lamp uses Bluetooth or Thread to connect with the Nanoleaf App. |
Requirements:
• Nanoleaf App (version 9.0.0 or higher)
• Mobile device with Bluetooth enabled
⭐ Optional: Thread network with credentials saved on your mobile device
HOW-TO:
• Download and launch the Nanoleaf App from your app store.
• Tap the “+” icon to add a new device.
• Scan the Pairing Code Sticker included with your lamp.
• Follow the on-screen steps to complete setup.
If you're using Thread, ensure your mobile device has access to Thread credentials (typically shared via iOS or Android natively).
— — —
| Resetting Your Cono |
If you need to reset your device:
• Tap the button three (3) times to activate, AND press and hold for seven (7) seconds until the light flashes red three (3) times.
— — —
|
SAFETY & USAGE TIPS ✅ Do not place the lamp in enclosed areas with poor ventilation or where the temperature exceeds 40°C. ✅ Not designed for outdoor or damp/wet environments. ✅ Do not clean while plugged in. Use a dry, soft cloth. ✅ Avoid disassembling the unit to preserve warranty and ensure safety. |
🌿 Dispose of the device in accordance with local electronic recycling laws. For EU users, refer to directive 2012/19/EU.
Warranty: These two (2) product include a 2-year limited hardware warranty. For full terms, visit this resource 🔗
